電纜橋架作為電力系統中不可或缺的支撐結構，其承載能力直接關系到電纜線路的運行與使用壽命。在山東地區的工業與民用建筑中，電纜橋架的選型與應用需充分考慮其承載性能，以確保電力傳輸?shù)姆€(wěn)定性與性。

　　As an indispensable supporting structure in the power system, cable trays have a bearing capacity that directly affects the safe operation and service life of cable lines. In industrial and civil buildings in Shandong region, the selection and application of cable trays should fully consider their load-bearing performance to ensure the stability and safety of power transmission.

　　一、電纜橋架承載能力的定義

　　1、 Definition of Bearing Capacity of Cable Trays

　　電纜橋架的承載能力，是指其在特定安裝條件下，能夠支撐的電纜總重量。這一指標不僅取決于橋架本身的材質、規格與結構，還受到安裝方式、環境條件以及電纜填充率等多重因素的影響。

　　The bearing capacity of cable trays refers to the total weight of cables that can be safely supported under specific installation conditions. This indicator depends not only on the material, specifications, and structure of the bridge itself, but also on multiple factors such as installation methods, environmental conditions, and cable filling rates.

　　二、影響電纜橋架承載能力的關鍵因素

　　2、 Key factors affecting the bearing capacity of cable trays

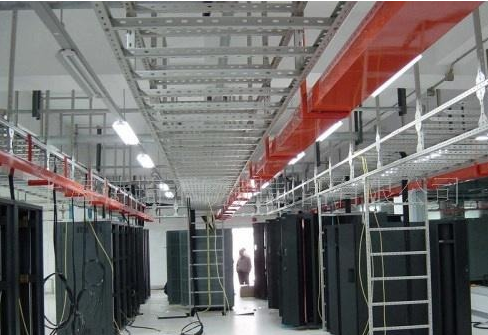

　　橋架類型

　　Bridge type

　　槽式橋架：具有密閉性好的特點，適用于電纜數量多、防護要求高的場景。其承載能力相對較弱，一般適用于輕載環境。

　　Trough type cable tray: It has the characteristic of good airtightness and is suitable for scenarios with a large number of cables and high protection requirements. Its carrying capacity is relatively weak and generally suitable for light load environments.

　　梯式橋架：采用梯形結構設計，通風散熱性能優異，承載能力較強，適用于中載環境。

　　Ladder style bridge: Designed with a trapezoidal structure, it has excellent ventilation and heat dissipation performance, strong load-bearing capacity, and is suitable for medium load environments.

　　托盤式橋架：結合槽式與梯式的優點，既具有一定的密閉性，又具備良好的承載能力，適用于重載環境。

　　Tray type bridge: Combining the advantages of trough type and ladder type, it has a certain degree of airtightness and good load-bearing capacity, suitable for heavy-duty environments.

　　材質選擇

　　Material selection

　　鋼材：具有高強度、良好的韌性與可焊性，是電纜橋架的主要材質。其承載能力優于鋁合金與玻璃鋼。

　　Steel: With high strength, good toughness, and weldability, it is the main material for cable trays. Its load-bearing capacity is superior to aluminum alloy and fiberglass.

　　鋁合金：重量輕、耐腐蝕，但承載能力相對較弱，適用于對重量敏感或腐蝕性環境。

　　Aluminum alloy: lightweight and corrosion-resistant, but with relatively weak load-bearing capacity, suitable for weight sensitive or corrosive environments.

　　玻璃鋼：耐腐蝕、絕緣性能好，但承載能力有限，適用于特殊環境。

　　Fiberglass: Corrosion resistant, good insulation performance, but limited load-bearing capacity, suitable for special environments.

　　規格參數

　　Specification parameters

　　寬度與高度：橋架的寬度與高度直接影響其承載面積與穩定性。一般來說，寬度與高度越大，承載能力越強。

　　Width and height: The width and height of the bridge directly affect its load-bearing area and stability. Generally speaking, the larger the width and height, the stronger the load-bearing capacity.

　　厚度：橋架側板與底板的厚度是決定其承載能力的關鍵因素。厚度增加，承載能力顯著提升。

　　Thickness: The thickness of the side and bottom plates of the bridge is a key factor determining its load-bearing capacity. The increase in thickness significantly enhances the load-bearing capacity.

　　安裝方式

　　Installation method

　　壁掛式：適用于電纜數量少、重量輕的場景，承載能力相對較弱。

　　Wall mounted: Suitable for scenarios with few cables and light weight, with relatively weak load-bearing capacity.

　　吊頂式：通過吊桿或吊架安裝，適用于電纜數量多、重量大的場景，承載能力較強。

　　Ceiling type: Installed through suspension rods or hangers, suitable for scenarios with a large number of cables and heavy weight, with strong load-bearing capacity.

　　立柱式：采用獨立立柱支撐，穩定性好，承載能力強，適用于重載環境。

　　Column type: supported by independent columns, with good stability and the strongest bearing capacity, suitable for heavy-duty environments.

　　三、電纜橋架承載能力的具體數據

　　3、 Specific data on the bearing capacity of cable trays

　　根據山東地區電纜橋架的實際應用情況，不同類型與規格的橋架承載能力大致如下：

　　According to the actual application of cable trays in Shandong region, the bearing capacity of different types and specifications of trays is roughly as follows:

　　輕型槽式橋架：寬度200mm，高度100mm，側板厚度1.2mm，承載能力約50kg/m。

　　Lightweight trough bridge: width 200mm, height 100mm, side plate thickness 1.2mm, bearing capacity of approximately 50kg/m.

　　中型梯式橋架：寬度300mm，高度150mm，橫檔間距300mm，承載能力約150kg/m。

　　Medium sized ladder bridge: width 300mm, height 150mm, crossbar spacing 300mm, bearing capacity of approximately 150kg/m.

　　重型托盤式橋架：寬度600mm，高度200mm，側板厚度2.0mm，承載能力可達500kg/m。

　　Heavy duty tray type bridge: width 600mm, height 200mm, side plate thickness 2.0mm, bearing capacity up to 500kg/m.

　　四、實際應用中的考慮因素

　　4、 Considerations in practical applications

　　電纜填充率：電纜在橋架內的填充率不宜過高，一般不超過40%，以確保散熱與維護空間。

　　Cable filling rate: The filling rate of cables in the cable tray should not be too high, generally not exceeding 40%, to ensure heat dissipation and maintenance space.

　　動載與靜載：橋架需考慮電纜自重（靜載）以及可能的附加載荷（動載），如檢修人員、工具等。

　　Dynamic and static loads: Cable trays need to consider the cable's own weight (static load) and possible additional loads (dynamic load), such as maintenance personnel, tools, etc.

　　環境因素：高溫、腐蝕性環境會降低橋架的承載能力，需選擇耐候性強的材質與表面處理工藝。

　　Environmental factors: High temperature and corrosive environments can reduce the load-bearing capacity of the bridge, so it is necessary to choose materials with strong weather resistance and surface treatment processes.

　　系數：設計時需預留一定的系數，一般取1.5-2.0，以應對不可預見的風險。

　　Safety factor: A certain safety factor should be reserved during design, generally ranging from 1.5 to 2.0, to cope with unforeseeable risks.
