梯式橋架作為現代建筑電氣工程中的核心組件，以其獨特的開放式結構與高承載性能，成為電纜敷設領域的標志性解決方案。從工業廠房到數據中心，從商業綜合體到交通樞紐，梯式橋架的身影無處不在，其設計理念與功能特性深刻影響著電氣布線系統的效率與性。

　　As a core component in modern building electrical engineering, ladder style cable trays have become a landmark solution in the field of cable laying due to their unique open structure and high load-bearing capacity. From industrial plants to data centers, from commercial complexes to transportation hubs, ladder style cable trays are ubiquitous, and their design concepts and functional characteristics profoundly affect the efficiency and safety of electrical wiring systems.

　　一、結構特性：開放式設計的工程美學

　　1、 Structural Characteristics: Engineering Aesthetics of Open Design

　　梯式橋架的命名源于其梯形橫截面結構，由兩側縱梁與橫向梯檔組成，形似梯子。這種設計賦予了它三大核心優勢：

　　The naming of the ladder bridge comes from its trapezoidal cross-sectional structure, consisting of longitudinal beams on both sides and transverse ladder stops, resembling a ladder. This design gives it three core advantages:

　　的散熱性能

　　Excellent heat dissipation performance

　　開放式結構使電纜與空氣接觸面積化，自然對流效率提升。實驗數據顯示，在同等負載條件下，梯式橋架內電纜溫度較封閉式橋架低，有效延緩絕緣層老化，延長電纜使用壽命。

　　The open structure maximizes the contact area between the cable and air, improving the efficiency of natural convection. Experimental data shows that under the same load conditions, the cable temperature inside the ladder bridge is lower than that of the enclosed bridge, effectively delaying the aging of the insulation layer and extending the service life of the cable.

　　便捷的線纜管理

　　Convenient cable management

　　梯檔間距可根據電纜直徑靈活調整，支持分層敷設。某數據中心項目通過梯式橋架實現強電、弱電、光纖的物理隔離，避免信號干擾，維護人員可快速定位故障線路。

　　The spacing between ladder steps can be flexibly adjusted according to the diameter of the cable, and it supports layered laying. A certain data center project achieves physical isolation of strong and weak electricity, as well as optical fibers, through ladder style cable trays to avoid signal interference, and maintenance personnel can quickly locate faulty lines.

　　高強度與輕量化的平衡

　　Balance between high strength and lightweight

　　采用冷軋鋼板或鋁合金材質，通過折邊工藝增強抗彎強度。某汽車工廠總裝車間使用的鋁合金梯式橋架，單跨承載能力達，而自重僅為傳統橋架的60%，顯著降低安裝難度。

　　Using high-quality cold-rolled steel plates or aluminum alloy materials, the bending strength is enhanced through the folding process. The aluminum alloy ladder bridge used in the final assembly workshop of a certain automobile factory has a single span bearing capacity of up to, but its self weight is only 60% of that of traditional bridge, significantly reducing installation difficulty.

　　二、核心作用：電纜敷設的保障

　　2、 Core function: Comprehensive guarantee for cable laying

　　梯式橋架在電氣工程中扮演著多重角色：

　　Ladder style cable trays play multiple roles in electrical engineering:

　　機械保護：為電纜提供物理防護，抵御機械損傷與動物啃咬。某化工園區項目在橋架外側加裝不銹鋼護罩，成功抵御腐蝕性氣體侵蝕，保障電纜運行。

　　Mechanical protection: provides physical protection for cables to resist mechanical damage and animal bites. A certain chemical industrial park project installed stainless steel covers on the outside of the cable tray, successfully resisting corrosive gas erosion and ensuring the safe operation of cables.

　　電磁屏蔽：通過噴涂導電涂層或內置金屬網，可實現電磁屏蔽功能。某醫院MRI室采用屏蔽型梯式橋架，有效隔離電磁干擾，確保醫療設備精準運行。

　　Electromagnetic shielding: Electromagnetic shielding can be achieved by spraying conductive coatings or embedding metal mesh. The MRI room of a certain hospital adopts a shielded ladder bridge structure to effectively isolate electromagnetic interference and ensure the precise operation of medical equipment.

　　防火阻燃：采用阻燃材質與防火涂層，滿足建筑防火規范。某商業綜合體項目使用的橋架，在火災模擬試驗中耐火極限達，為人員疏散爭取寶貴時間。

　　Fireproof and flame retardant: using flame-retardant materials and fire-resistant coatings to meet building fire safety regulations. The bridge used in a commercial complex project had a fire resistance limit of up to in the fire simulation test, which saved valuable time for personnel evacuation.

　　三、應用場景：跨越行業的布線解決方案

　　3、 Application scenario: Cross industry cabling solution

　　梯式橋架的適應性使其廣泛應用于各類場景：

　　The adaptability of ladder style cable trays makes them widely used in various scenarios:

　　工業領域：在冶金、電力等重工業場景，橋架需承受高溫、粉塵等極端條件。某鋼鐵廠高爐區域采用耐高溫橋架，表面涂層耐受溫度達，確保電纜在高溫環境下穩定運行。

　　Industrial field: In heavy industrial scenarios such as metallurgy and power, cable trays need to withstand extreme conditions such as high temperatures and dust. The blast furnace area of a certain steel plant adopts high-temperature resistant cable trays, and the surface coating can withstand temperatures up to, ensuring the stable operation of cables in high-temperature environments.

　　民用建筑：在寫字樓、酒店等場所，橋架與裝飾吊頂深度融合。某五酒店大堂通過定制化橋架，將電纜隱藏于天花造型中，兼顧功能與美觀。

　　Civil buildings: In office buildings, hotels, and other places, cable trays and decorative ceilings are deeply integrated. A five-star hotel lobby uses customized cable trays to hide cables in the ceiling design, balancing functionality and aesthetics.

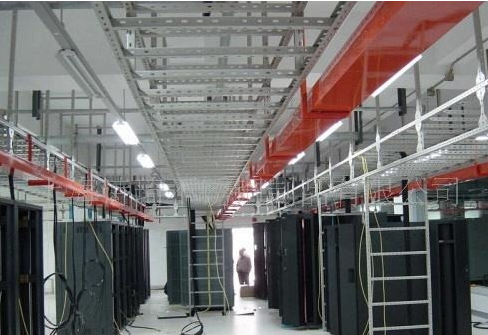

　　數據中心：作為服務器機柜間互聯的“血管”，橋架需支持高密度布線。某云數據中心采用雙層梯式橋架，上層敷設電力電纜，下層布置光纖，實現動靜分離，提升散熱效率。

　　Data center: As the "blood vessel" for interconnecting server cabinets, cable trays need to support high-density cabling. A certain cloud data center adopts a double-layer ladder bridge structure, with power cables laid on the upper layer and optical fibers laid on the lower layer to achieve dynamic and static separation and improve heat dissipation efficiency.

　　基礎設施：在地鐵、機場等交通樞紐，橋架需滿足抗震、防雷等特殊要求。某國際機場項目通過橋架內置接地銅排，實現等電位連接，保障電氣。

　　Infrastructure: In transportation hubs such as subways and airports, cable trays must meet special requirements for earthquake resistance and lightning protection. A certain international airport project achieves equipotential connection by embedding grounding copper bars in the bridge frame, ensuring electrical safety.

　　四、系統集成：從單一產品到智能布線生態

　　4、 System Integration: From a Single Product to an Intelligent Cabling Ecosystem

　　隨著技術發展，梯式橋架正從被動支撐向主動管理演進：

　　With the development of technology, ladder style cable trays are evolving from passive support to active management:

　　智能監測：橋架內嵌傳感器，實時監測溫度、濕度、振動等參數。

　　Intelligent monitoring: The bridge is embedded with sensors to monitor real-time parameters such as temperature, humidity, and vibration.

　　預制化裝配：采用模塊化設計，支持快速拼裝。

　　Prefabricated assembly: adopting modular design, supporting fast assembly.

　　綠色：開發再生材料橋架，碳足跡較傳統產品降低。

　　Green and energy-saving: Developing recycled material cable trays to reduce carbon footprint compared to traditional products.

　　梯式橋架以開放式結構為基石，通過材料創新與智能升級，構建起、、可持續的電氣布線系統。從支撐電纜到融入建筑生命體，其價值已超越單一產品，成為智慧城市基礎設施的重要組成部分。隨著技術迭代，梯式橋架將持續賦能電氣工程，為現代建筑注入更強動力。

　　The ladder style cable tray is based on an open structure, and through material innovation and intelligent upgrading, it constructs a safe, efficient, and sustainable electrical wiring system. From supporting cables to integrating into building life forms, its value has surpassed a single product and become an important component of smart city infrastructure. With technological iteration, ladder style cable trays will continue to empower electrical engineering and inject stronger power into modern buildings.
