At present, Shandong bridge is very popular in the construction power industry. With the application of the bridge from time to time, more and more people choose to install the bridge, and pay more and more attention to it. Do you know the cable arrangement methods of the bridge and distribution frame? Today, Jinan cable bridge factory is here to introduce you.

　　先要整理橋架上的線纜：普通狀況下，整理樓層橋架中的線纜并不是很艱難，只需直接順著它的方向理順整理即可，不需停止捆扎。另外，主干橋架中的線纜則需求運用扎帶停止簡單的捆扎，用來區別不同的樓層，并減少重力拉伸線纜，從而防止改動橋架物理屬性(絞合度、長度等)和電氣性能。

　　First, the cables on the bridge should be sorted out: under normal conditions, it is not very difficult to sort out the cables in the floor bridge, just straighten out the cables in its direction, without stopping binding. In addition, the cables in the trunk bridge need to stop simple bundling with ties to distinguish different floors, and reduce the gravity tension of the cables, so as to prevent changes in the physical properties (stranding, length, etc.) and electrical performance of the bridge.

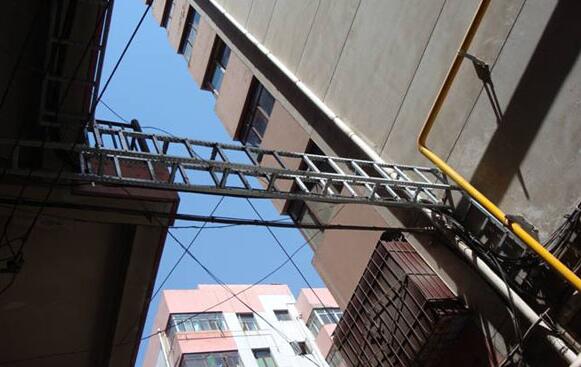

　　橋架

　　Bridge frame

　　其次是如何整理配線架中的線纜,這局部需求細分為兩小節：

　　Secondly, how to sort out the cables in the distribution frame is divided into two sections:

　　1、整理前面板線纜

　　1. Arrange the front panel cable

　　假如交流機與配線架位于同一機柜中，則只需選擇恰當長度的跳線，將跳線打個環后置于理線器中。

　　If the AC machine and distribution frame are located in the same cabinet, only the jumper of appropriate length should be selected, and the jumper should be placed in the wire manager after looping.

　　然后，兩端分別銜接交流機和配線架端口,一切銜接都完成后，蓋上理線器的蓋板即可,假如配線架與交流機位于不同的機柜，那么需求運用較長的跳線需求對跳線停止整理。除了配線架和交流機的前面板需求運用理線器對線纜停止整理外，垂直局部也應當運用垂直理線器停止整理。

　　Then, the two ends are connected to the port of the AC machine and the distribution frame respectively. After all the connections are completed, cover the cover plate of the cable manager. If the distribution frame and the AC machine are located in different cabinets, long jumpers are required to be used to stop the arrangement of jumpers. In addition to the front panel of the distribution frame and the AC machine, the cable manager shall be used to stop the cable sorting, and the vertical part shall also be used to stop the sorting.

　　2、整理后部線纜

　　2. Arrange the rear cable

　　配線架后部集中著網絡布線系統中的一切程度布線，因而有大量的線纜需求整理。在通常狀況下，每一個配線架中的線纜在理順之后，應當運用尼龍?jiān)鷰б来卫υ潭ā?/div>
